Sheet filter systems

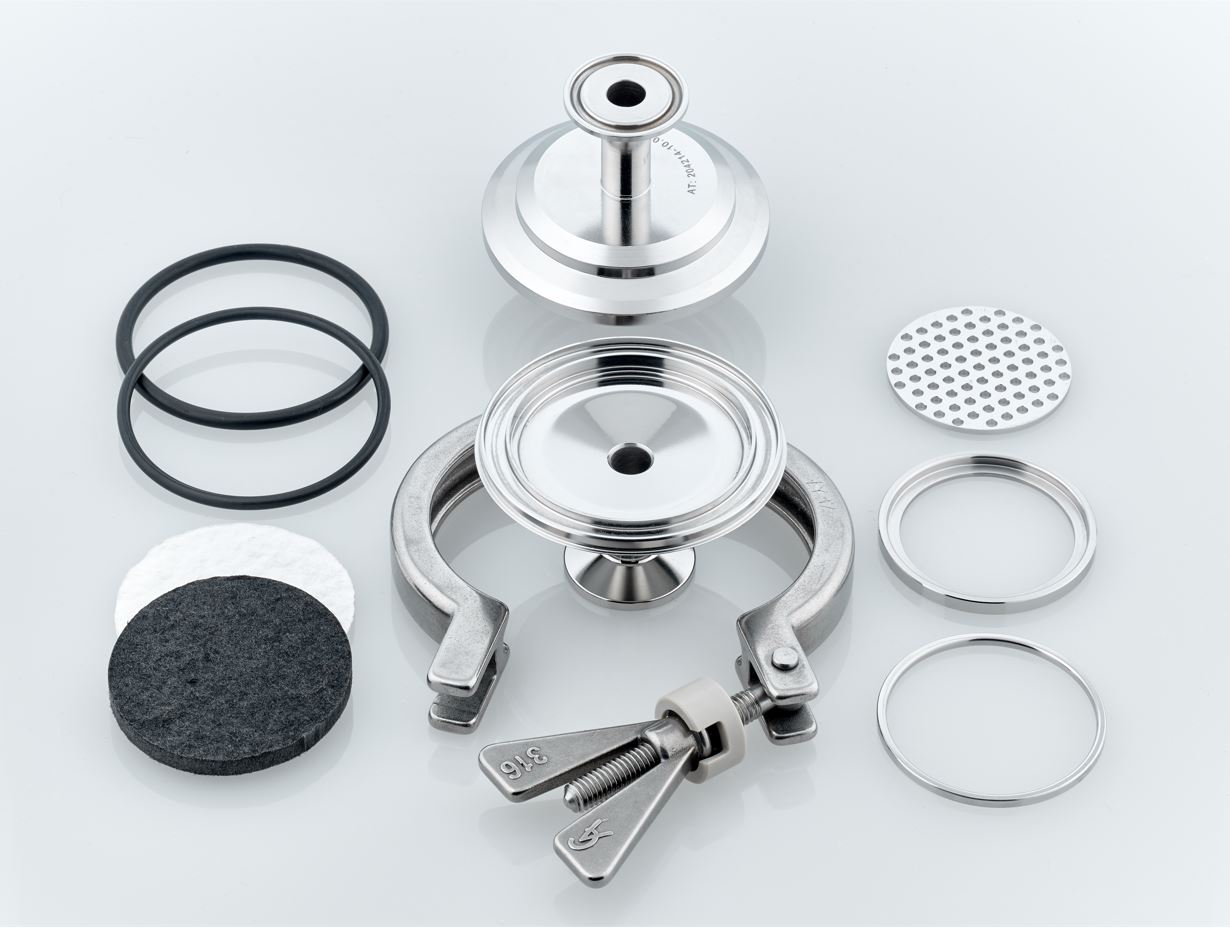

BECO INTEGRA LAB 60 P (vario) is an enclosed single-sheet depth filtration system with a wide range of accessories for small volume filtration tasks in laboratories and research centers. The areas of application include small batches and upscaling in biotechnology and pharmaceutical, chemical, and cosmetics industries.

解决方案咨询

返回到搜索

概述型号资源支持

Material

Stainless steel AISI 316L /316 Ti

Filter Area

3.25 in² (21 cm²)

Use

Small Volume Filtration, Scale-up

核心功能

Simple and clearly arranged design with many connection, valve, and pressure measurement options
An O-ring sealing ensures a high level of safety by preventing leakage to the surrounding atmosphere
Ergonomic design for easy handling. Effortless replacement of BECO depth filter sheets; thorough and easy cleaning, no dead spaces.
Variable application possibilities by using the base filter and sludge chambers of various size (with and without heating) for sheet and cake filtration
With exchangeable spacers all depth filter sheets with a thickness from 0.06" to 0.24" (1.5 – 6 mm) can be used (pressing to a thickness from 0.02" to 0.1" (0.5 to 2.5 mm).
System components enable parallel or step filtration processes using one arrangement of several filters

Industries include:

Biotech
Fine chemicals
Pharmaceuticals
Cosmetics
Chemical

Other models and enhancements with additional components for complete systems are possible according to requirements.

规格

过滤器

在结果中进一步搜索

尝试其他搜索

您的搜索 "" 不能匹配到任何文档或产品。

Specifications

Max. permissible operating pressure:	87 psi (600 kPa/6 bar)
Max. permissible differential pressure:	58 psid (400 kPa/4 bar)
Max. permissible operating temperature:	284 °F (140 °C)
Depth filter size:	Ø 2.36" (Ø 60 mm)
Thickness of depth filter sheets:	0.06−0.18" (1.5 − 4.5 mm) thickness , when using spacer up to 0.24” thickness (6 mm)*
Filter area:	3.25 in² (21 cm²)
Weight:	2.20 lbs (1 kg)
Product contacting parts:	Stainless steel AISI 316L / Stainless steel AISI 316Ti
Others:	Stainless steel AISI 304
Gaskets, O-rings:	EPDM (standard) , Silicone, Viton, FEP coated
Filter inlet:	Tri-clamp 1/2" ASME BPE
Filter outlet:	Tri-clamp 1/2" ASME BPE
* Spacer for pressing up to 0.1" (2.5 mm), (thickness of sheets up to 0.24" (6 mm))
