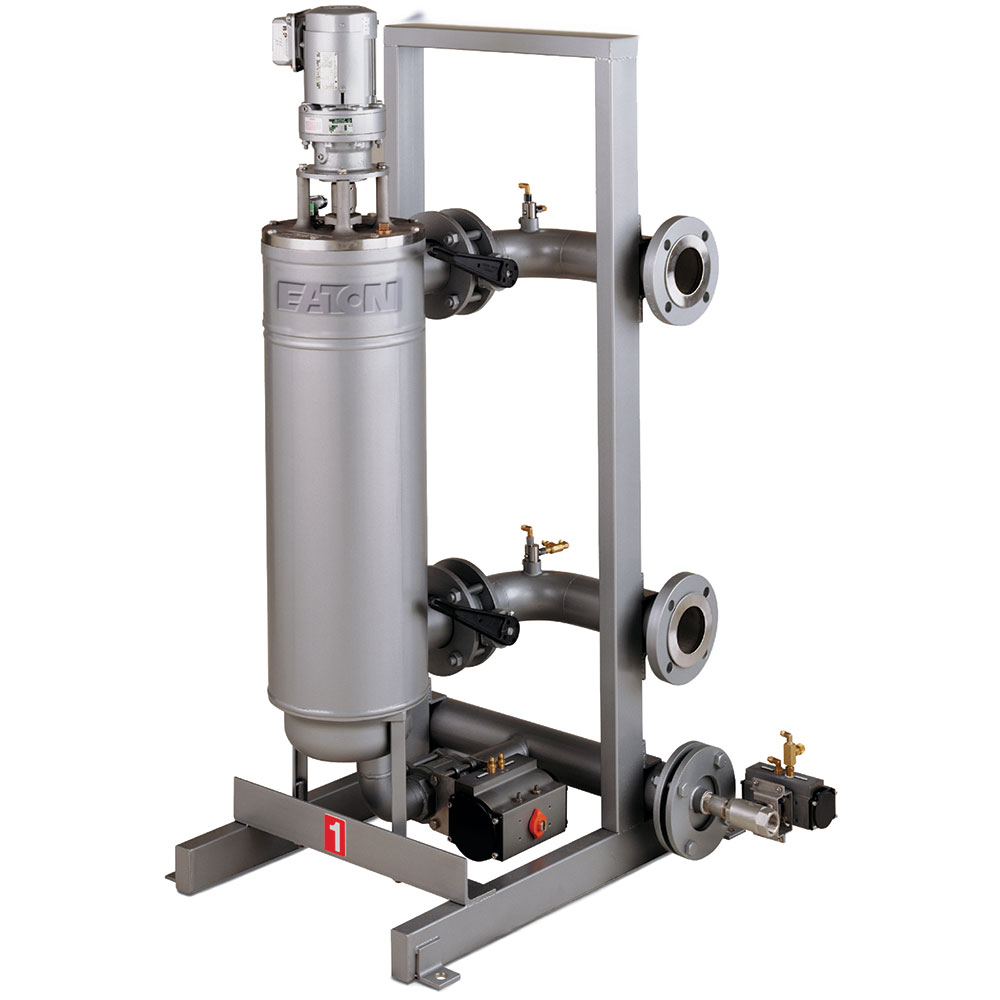

DCF 2000 motor driven self-cleaning filter systems

Technology

Mechanically cleaned

Total Volumetric Capacity

11 gal (41.6 liters)

Filter Area

610 in² (3,935 cm²)

核心功能

Filters 48-72% solids coatings at 75 micron retention—the tightest in the industry
Continuously removes contaminants from the coating and efficiently evacuates collected contaminants while operating at a low, constant differential pressure
Designed for continuous unattended operation—without the need for operator intervention
Mechanically cleaned media eliminates replacement media cost and the expense and hazard of waste disposal
Increased profitability—improves system efficiency, reduces paperbreaks and associated downtime
Multiplex configurations available and valved to a common tapered header for high-flow applications

Applications:

规格

Single Unit Weight	564 lbs (256 kg)
Service Height	72 in (1,829 mm)
Total Volumetric Capacity	11 gal (41.6 liters)
Purge Chamber Capacity	1.5 gal (6 liters)
Filtration Surface Area	610 in2 (3,935 cm2)
Flow Rate Range at 100µ	30–200 gpm (6.8–45.4 m3/hr)
Temperature, maximum	160˚ F (71˚ C)
Pressure, maximum	150 psi (10.5 bar) standard
Electrical for Motor Drive	single phase 110/220V, 50/60 Hz for control and three phase, 220/380/440/575V (please specify), 50/60 Hz for motor.
Electrical for Controllers	single phase 110/220V, 50/60 Hz
