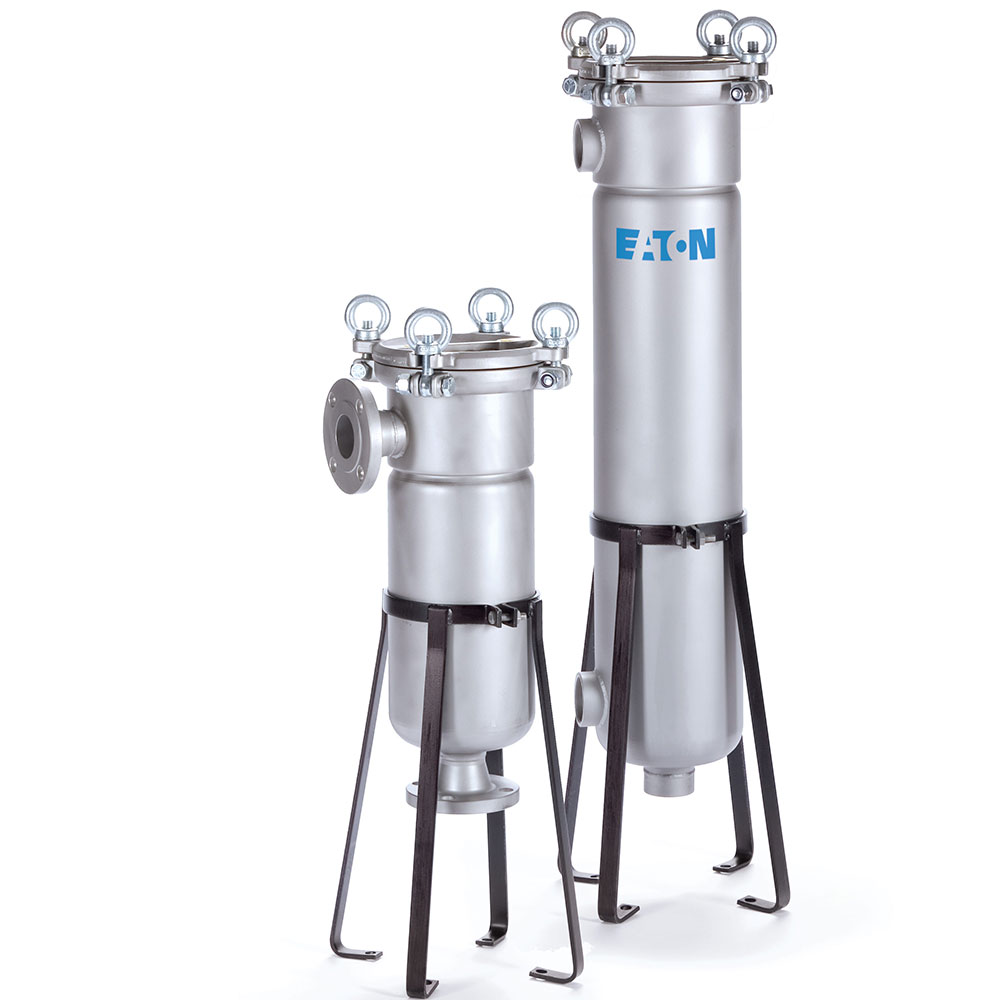

The FLOWLINE II bag filter housings offer the most cost-effective solution to single bag filter housing requirements. Its unique one-piece body design eliminates the traditional body to bottom cap circumferential weld and provides a secure, no by-pass internal seal for operational integrity. The FLOWLINE II is available with Eaton’s new Splash Guard safety accessory option.
Stainless Steel Bag Filters for Heavy Duty Applications
Key FLOWLINE II Applications:
A Versatile, Cost Effective Housing for Heavy Duty Applications Not Requiring a Code Stamp
A FLOWLINE II stainless steel bag filter housing from Eaton is the best choice for industrial, commercial and OEM applications that do not require a Code Stamp. Its cost-effective design incorporates all of the features heavy duty applications demand, including a one-piece body design, an investment cast swing bolt cover that can be adapted to different opening directions in the field and a quality stainless steel restrainer basket for reduced pressure drop. FLOWLINE’s stainless steel construction ensures years of trouble-free, consistent performance at a competitive price.
ACCUGAF filter bag
DCF 400/ 800/ 1600
FLOWLINE
MAX-LOAD Pleated
MCF 824
POLYLINE
SENTINEL
SIDELINE
Spare Parts Bag Filter Housings
TOPLINE
已复制到剪贴板
需要至少选择两个产品才能使用比较工具。
Sorry, we can't get that information right now.
Models | No. of filter bags |
Size | Flow rate1 GPM (m3/h) |
Max. pressure psi (bar) |
Max. temp. ℉ (℃) |
Housing volume gal (l) |
Housing weigh lb (kg) |
I/O connections |
SBL101__020N | 1 | 01 |
88 (20) | 150 (10) | 250 (120) | 4 (15.5) | 37 (16.8) | 2” thread |
SBL102__020N | 1 | 02 |
176 (40) | 150 (10) | 250 (120) | 7 (27.0) | 50 (22.7) | 2” thread |
SBL101__020A | 1 | 01 |
88 (20) | 150 (10) | 250 (120) | 4 (15.5) | 37 (16.8) | 2” flange |
SBL102__020A | 1 | 02 |
176 (40) | 150 (10) | 250 (120) | 7 (27.0) | 50 (22.7) | 2” flange |
SBL102__030A | 1 | 02 |
176 (40) | 150 (10) | 250 (120) | 7 (27.0) | 69 (31.4) | 3” flange |
