Filter bags

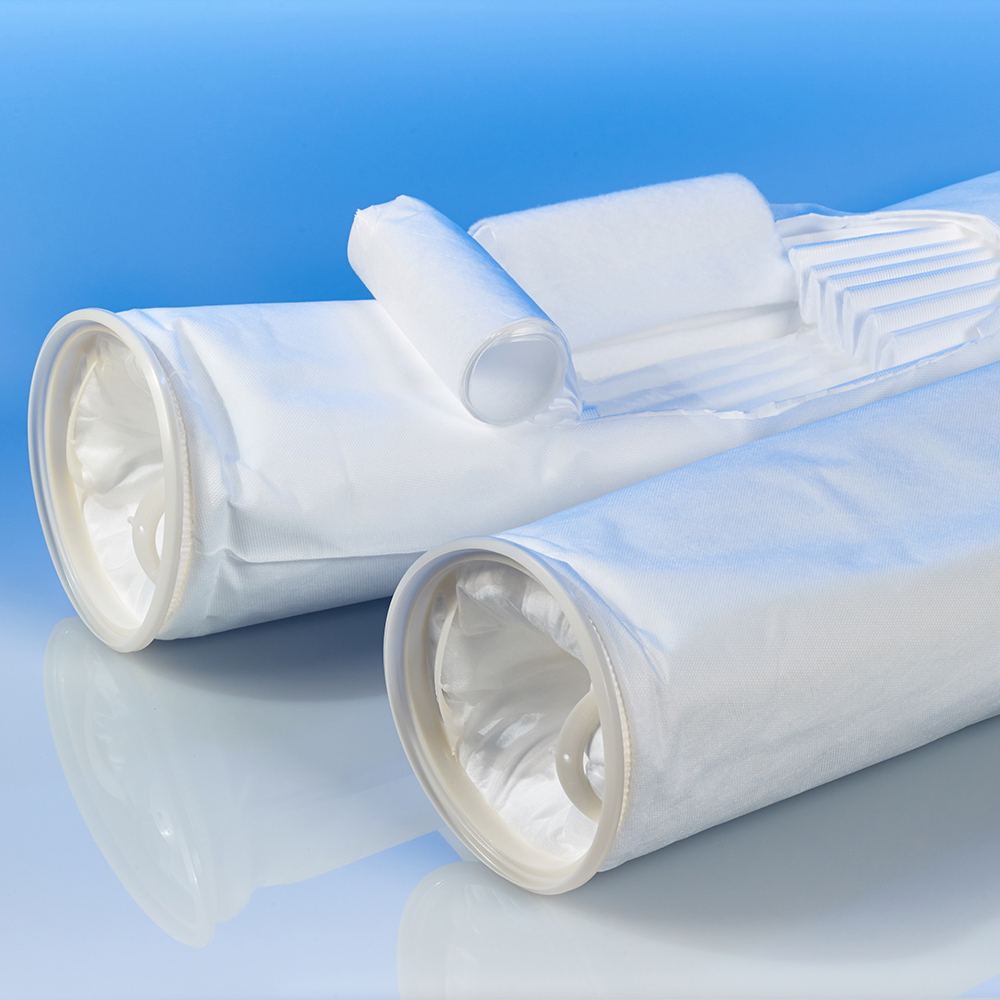

LOFCLEAR 500

LOFCLEAR 500 filter bags feature fully-welded, multipleated construction for high efficiency and long service life. This range has a pleated pre-filter and a complex arrangement of final filter layers, allowing the removal of difficult-to-filter gels and deformable particles with a high dirt-holding capacity. The webbed cover layer virtually eliminates any downstream fiber migration.

Material
Melt-blown
Efficiency
High
Capacity
High

核心功能

  • Fully-welded construction with patented Santoprene SENTINEL seal ring provides 100% bypass-free filtration
  • High dirt-holding capacity of more than 2.2 lbs (1,000 g)
  • Pleated pre-filter provides a very large filter area (approx. 32 ft² (3 m2))
  • Material is free from silicone and crater-forming substances
  • Eaton strongly recommends the use of an insertion tool that facilitates the insertion of the filter bag into the bag filter housing and ensures the correct alignment of the filter bag inside the restrainer basket

Key LOFCLEAR 500 applications

  • Filtration of oils and slurries
  • Dilute oil removal
  • Process fluids with heavy contamination

    规格
    显示差异
    仅显示不同点
    隐藏空白功能

    SPECIFICATIONS

    Material Melt-blown polypropylene

    Cover layer Spunbond polypropylene

    Seal ring Welded Santoprene
    SENTINEL seal ring

    Retention ratings
    2.6, 6, 13, 32 µm @ > 99% efficiency

    Size 02: Ø 7 x 31“ L (180 x 795 mm)

    Filter area
    02: 5.2 ft² (0.48 m²) (plus approx. 32 ft² (3 m²) pleated pre-filter)

    Max. operating temperature
    194 °F (90 °C)

    Max. differential pressure
    36.2 psi (2.5 bar)

    Recommended change-out pressure for disposal
    11.6 – 21.7 psi (0.8 – 1.5 bar)

    Max. flow rate
    02: 53 GPM (12 m³/h)
