Filter bags

SNAP-RING

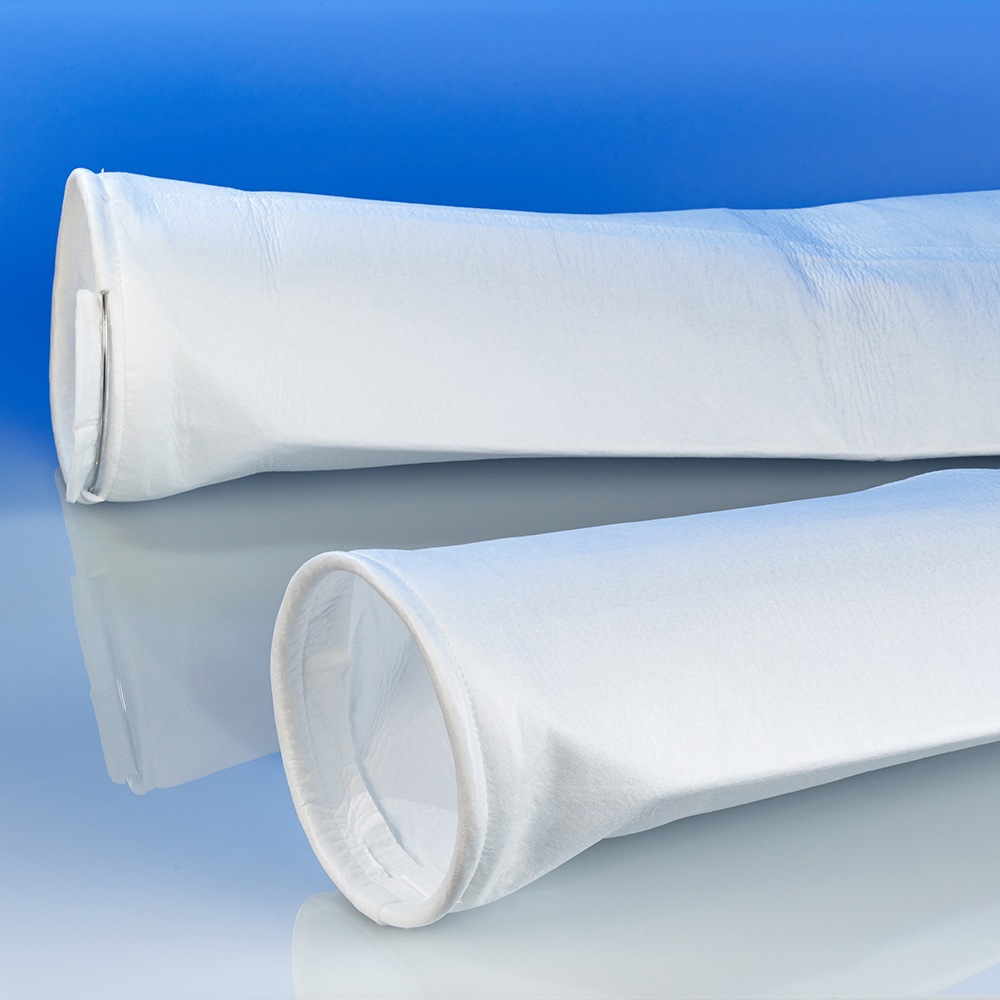

SNAP-RING filter bags are manufactured to the highest standards. Materials must meet stringent specifications for filtration performance and media purity. Production under ISO 9001:2015 quality systems ensures reliability and repeatability from order to order, year after year.

Filtration Order Center

In our new eStore, you can place and track orders for filtration products always, anywhere, anytime and on any device.
Material
Needle felt or mesh
Efficiency
Nominal
Capacity
Standard

核心功能

  • Heavy-duty sewing thread and the metal seal ring are produced to Eaton specification
  • The SNAP-RING seal ring adapts to any bag filter housing
  • Material is free from silicone and crater-forming substances (including HT material)
  • Eaton strongly recommends the use of an insertion tool that facilitates the insertion of the filter bag into the bag filter housing and ensures the correct alignment of the filter bag inside the restrainer basket

Key SNAP-RING Applications

  • Paints and varnishes
  • Inks
  • Chemicals
  • Solvents
规格
显示差异
仅显示不同点
隐藏空白功能

SPECIFICATIONS

Materials Needle felt polypropylene, polyester, nylon, wool, polytetrafluorethylene (PTFE) or meta-Aramid (HT)

Seal rings Sewn stainless steel or zinc-plated steel SNAP-RING seal ring

Retention rings 1, 5, 10, 25, 50, 100, 200 µm

Sizes 01: Ø 7 x 17” L (180 x 430 mm)
02: Ø 7 x 32” L (180 x 810 mm)
03: Ø 4 x 9” L (100 x 230 mm)
04: Ø 4 x 15” L (100 x 380 mm)

Filter area
01: 2.6 ft² (0.24 m²)
02: 5.2 ft² (0.48 m²)
03: 0.9 ft² (0.08 m²)
04: 1.7 ft² (0.16 m²)

Max. operating temperatures
Polypropylene: 230 °F (110 °C)
Polyester: 374 °F (190 °C)
Nylon: 374 °F (190 °C)
PTFE: 500 °F (260 °C)
HT: 401 °F (205 °C)

Max. differential pressure
36.2 psi (2.5 bar)

Recommended change-out pressure for disposal
11.6 – 21.7 psi (0.8 – 1.5 bar)

Max. flow rates
01: 88 GPM (20 m³/h)
02: 176 GPM (40 m³/h)
03: 26 GPM (6 m³/h)
04: 53 GPM (12 m³/h)
